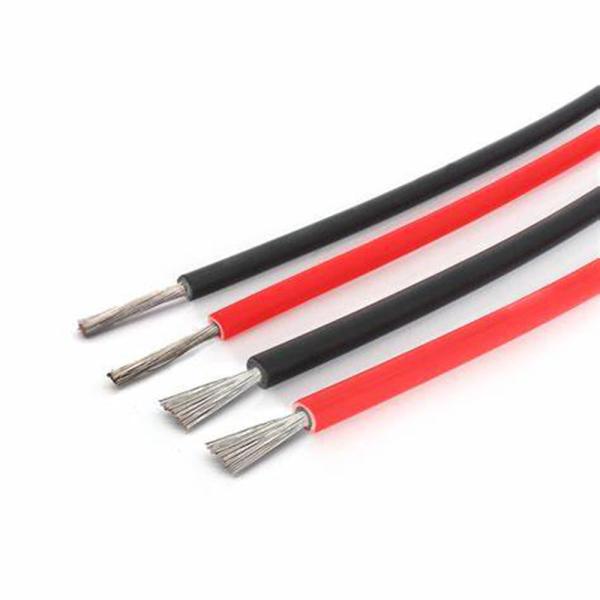

Pv1-f solar photovoltaic line 4 square photovoltaic DC line tinned copper wire single core photovoltaic cable
Having so many environmental problems, because of the waste of natural resources and not taking care of nature, the earth is becoming dried out, and the mankind seeks the ways to find alternative ways, the alternative power energy is already found and is called Solar Energy, gradually Solar photovoltaic industry is getting more and more attention as within time their prices go down and a lot of people considers solar energy as an alternative one for their offices or house power. They find it cheap, clean and reliable. On the background of the increased interest towards the Solar energy, it is expected to increase the demand on solar cables that consists of tinned copper, 1.5mm, 2.5mm, 4.0mm and etc. will be described a bit later. The solar cables are the current transmission mediums of solar energy power generation. They are nature-friendly and much safer than its predecessors. They are interconnecting solar panels.
| Name | PV Cable |
| The product description | Widely used in indoor and outdoor solar installations, electrical installation, indoor and outdoor, explosion-prone areas, factories, industrial and agricultural industries. |
| Product features | Low smoke without halogen, good cold, ultraviolet, ozone - resistant and weather - resistant. |
| Flame retardant, cutting resistance and penetration resistance. |
| Cable protection level Ⅱ level. |
| With 150 ℃ photovoltaic cable radiation as insulation materials, halogen free flame retardant is halogen-free, non-toxic modified polyethylene thin hengjing resin as the main raw material, add halogen-free, non-toxic, flame retardant, heat stabilizer, eliminate smoke agent, preservative, such as fertilizer, does not contain halogen, heavy metals, phosphorus. |
| It conforms to ROHS, and the insulation resistance is small after immersion. |
| Electrical | 1. The dc resistance: the finished cable at 20 ℃ conductive wire core dc resistance is not greater than 5.09 Ω/km |
| 2. The insulation resistance: the finished insulation resistance of cable at 20 ℃ should not less than 1014 Ω. Cm, finished cable insulation resistance at 90 ℃ is not less than 1011 Ω. Cm |
| 3. The sheath surface resistance: resistance of the finished cable sheath surface should be not less than 109 Ω. |
| Cable structure | Conductor: tinned copper wire 2.5, 4, 6, 10, 16 mm ^ 2 PV1 - F |
| 18, 16 and 14, 12, 10, 8, 6, 4, 2 mm ^ 2 PV wire |
| Insulation: > 0.5mm thick with low smoke and halogen material, and meet the specified limit of the customer. |
| Sheath: low smoke and halogen free material thickness > 0.5mm. |
| Detailed parameters | Ambient temperature: - 40 ℃ ~ + 90 ℃ |
| The highest temperature of conductor: 120 ℃ (allow 5 s in short circuit temperature 200 ℃) |
| Limited voltage: AC0.6/1kv dc1.8kv. |
Company introduction
We are a wire factory located in Zhejiang Haiyan, China.
We have professional, high quality machines and testing equipment. Main business Low voltage power cables, civil wires, audio cables, fire alarm cables,Control cable and other more than 30 series of products. The company's service purpose is Integrity-based, customer satisfaction for the principle. We hope that in the near future To work with you.
1. Q: Are you a factory or trading company?
A: We’re a factory locates in Zhejiang Province, which integrates R&D, manufacture and sales of various wires and cables
2. Q: What are your main products?
A: AAC/AAAC/ACSR/ACAR/AACSR/ACSR-AS/ACSS/ACSS-AW/ACS/GSW conductor, ABC cable, power cable, control cable, concentric cable,commonelectric wire, etc
3. Q: Can we have our logo or company name to be printed on your products or the package?
A: Yes, OEM and ODM are both acceptable for us.
4. Q: Do you provide samples? Free or not?
A: Yes, we’d like to provide free samples for your reference, but won’t bear the express fees.
5. Q: How long is your warranty period?
A: 1 year, and we promise to return or replace the cables within one year if any quality problem is found.
